PRODUCT OVERVIEW

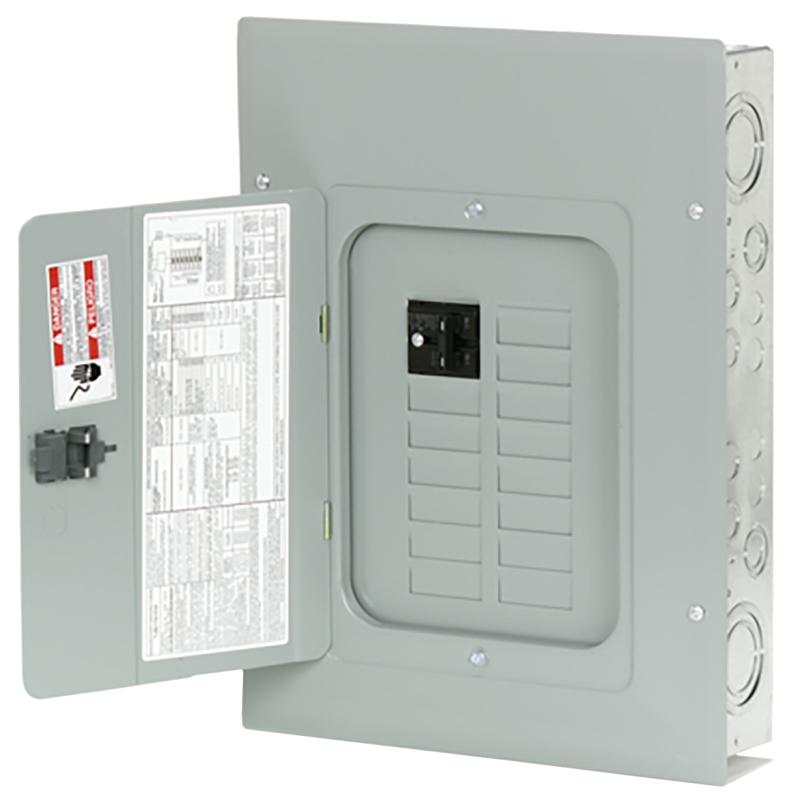

Eaton Load Center, 120/240 VAC, 100 A, Number of Phases: 1, Number of Spaces: 12, Number of Poles: 24, Number of Circuits: 24, Breaker/Load Center Type: Main Breaker, Plug-On Neutral, Type BR, Interrupt Rating: 10 kAIC, Cable Size: #4 to 1/0 AWG, Wiring Configuration: 3-Wire, Bus Bar Material: Aluminum, Enclosure Type: NEMA 1, Flush, Surface Mounting, Includes: Cover

Product Details

Breaker/Load Center Type	Main Breaker Plug-On Neutral Type BR
Bus Bar Material	Aluminum
Cable Size	4 to 1/0 AWG
Current Rating	100 A
Enclosure Type	NEMA 1
Includes	Cover
Interrupt Rating	10 kAIC
Mounting Type	Flush Surface
Number of Circuits	24
Number of Phases	1
Number of Poles	24
Number Of Spaces	12
Voltage Rating	120/240 VAC
Wiring Configuration	3-Wire

Features

• Knockout locations for additional access
• Optimized knockouts easier to remove
• Smooth case edges provides a more professional look and fee
• Top or bottom feed straight-in wiring saves labor and material
• One panel for either top or bottom applications
• 2/0 lug easily removable and can be installed in any location on the neutral bar
• Compact design for easier wiring improved wireway access
• Provides a clean gutter space
• Inboard neutral increases gutter space to allow for the professional installation of conductors
• Excellent conductivity and corrosion resistance
