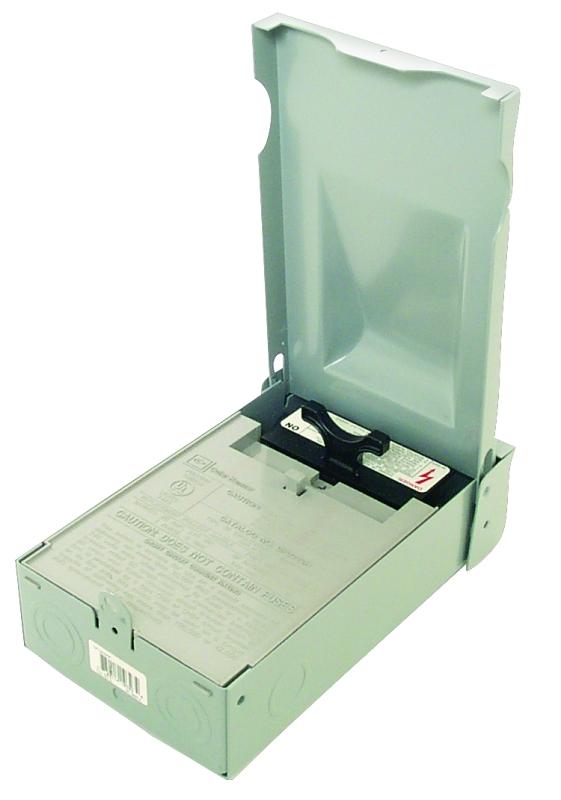

Box Ac Disconnect 60A

PRODUCT OVERVIEW

An air conditioning disconnect (ACD) is a disconnect located between the load center and the air conditioner. Eaton's ACD provides an installer or repair personnel with a visible disconnecting means when performing maintenance.

Product Details

Color	Gray
Current Rating	60 A
Enclosure Material	Steel
Height	3.43 in
HP Rating	10 hp
Length	5.4 in
Nema Rating	NEMA 3R
Number of Phases	1
Number of Poles	2
Number Of Wires	2
Type	Non-Fused Pullout
Voltage Rating	120/240 V
Wattage Rating	14400 W
Width	3.15 in

Features

• On/Off control provided by a pullout handle
• Pullout handle can be stored in the OFF position, helping to prevent misplacement
• Protective shield cannot be removed until the pullout handle is removed, disconnecting the power
