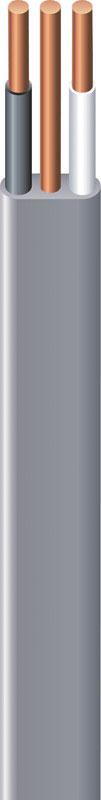

Uf Underground 14-2 W/gr 100‘

PRODUCT OVERVIEW

Southwire® copper UF-B cable is generally used as feeder to outside post lamps, pumps and other loads or apparatus fed from a distribution point in an existing building as specified in the 2011 National Electrical Code. UF-B cable may be used underground, including direct burial. Multiple conductor UF-B cable may be used for interior branch circuit wiring in residential or agricultural buildings at conductor temperatures not to exceed 90 deg C (with ampacity limited to that for 60 deg C conductors) as specified by the National Electrical Code. UF-B can be used in applications permitted for NMC in Section 334.10(B) of the National Electrical Code. Voltage rating for UF-B cable is 600 V.

Product Details

Conductor Insulation	PVC
Conductor Material	Copper
Current Rating	15 A
Length	100
Number of Conductors	2
Operating Temperature	90 deg C
Sheath Color	Gray
Sheath Material	Nylon
Strands per Conductor	1
Type	UF-B
Voltage Rating	600 V
Wire Size	14 AWG
