Cam Lock 3Cam 1-1/8

PRODUCT OVERVIEW

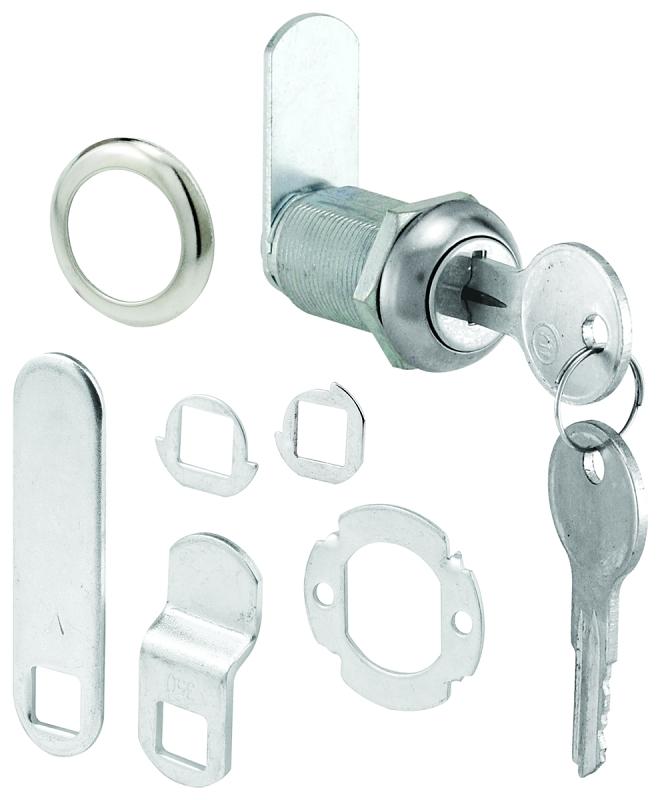

Stainless steel face. Plated die-cast housing and steel cams can be mounted to metal or wood doors and drawers from 13/16 in thick. 1-1/8 in D x 2 in L. Keyed locking for maximum security. Uses Yale Y-13 keyway. Includes 1 lock, 3 cams, 1 trim collar, 1 spur washer, 2 rotation washers, 1 lock nut and 2 keys.

Product Details

Dimensions	1-1/8 in L
Finish	Chrome
Includes	(1) Lock (2) Cams (2) Trim Collars (1) Spur Washer (2) Rotation Washers (1) Lock Nut (2) Keys
Key Type	Keyed Different
Keyway Type	Y13 Yale
Lock Type	Keyed
Material	Stainless Steel
Mounting Hole Diameter	3/4 in
Number Of Keys	2
Suitable for	1/2 to 1 in Thick Doors

Features

• Plated die-cast housing and steel cams can be mounted to metal or wood door
• Includes 90 and 180 deg cam discs, trim ring and hold-in disc for wood cabinetry
• Keyed locking for maximum security
