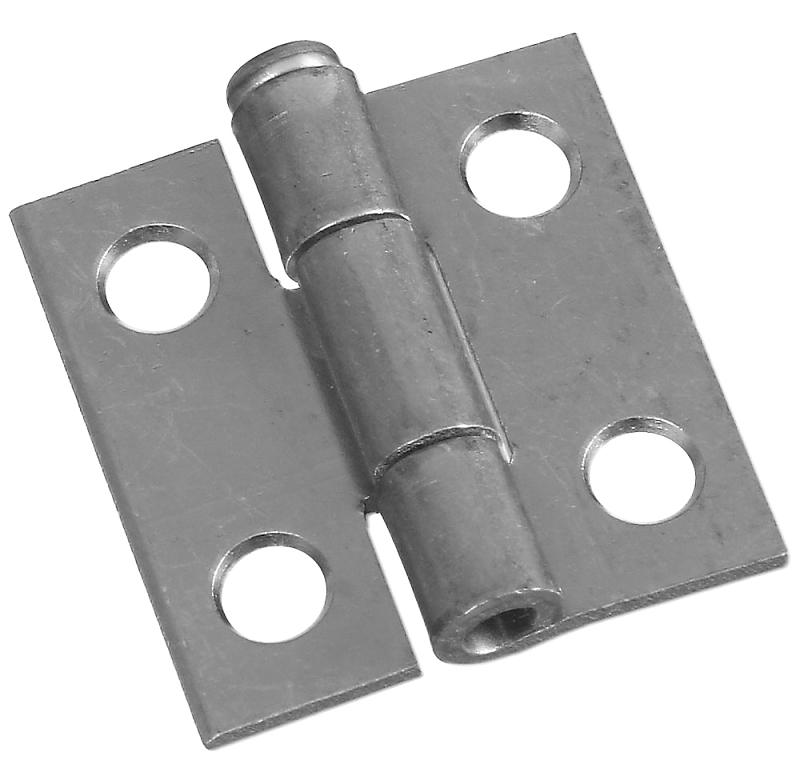

National Utility Hinge Narrow 1X1

PRODUCT OVERVIEW

National Hardware Narrow Hinge, 7 lb Weight, Door Leaf Width: 1 in, Door Leaf Thickness: 0.045 in, Frame Leaf Width: 1 in, Frame Leaf Thickness: 0.045 in, Number of Knuckles: 5, Pin Type: Removable, Loose, Pin Diameter: 0.106 in, Full Mortise Mounting, Number of Mounting Holes: 4, Mounting Hole Diameter: 0.165 in, Hole Spacing: 5/8 in, Cold Rolled Steel, Zinc, Dimensions: 1 in L x 1 in W

Product Details

Dimensions	1 in L x 1 in W
Door Leaf Thickness	0.045 in
Door Leaf Width	1 in
Finish	Zinc
Frame Leaf Thickness	0.045 in
Frame Leaf Width	1 in
Hole Spacing	5/8 in
Material	Cold Rolled Steel
Mounting Hole Diameter	0.165 in
Mounting Type	Full Mortise
Number of Knuckles	5
Number of Mounting Holes	4
Pin Diameter	0.106 in
Pin Type	Removable Loose
Weight Capacity	7 lb

Features

• Swaged for mortise installations
• Loose pin allows doors to be removed without removing hinge
