National Narrow Hinge 1" Brs

$5.69 / CG


Item # 7156532

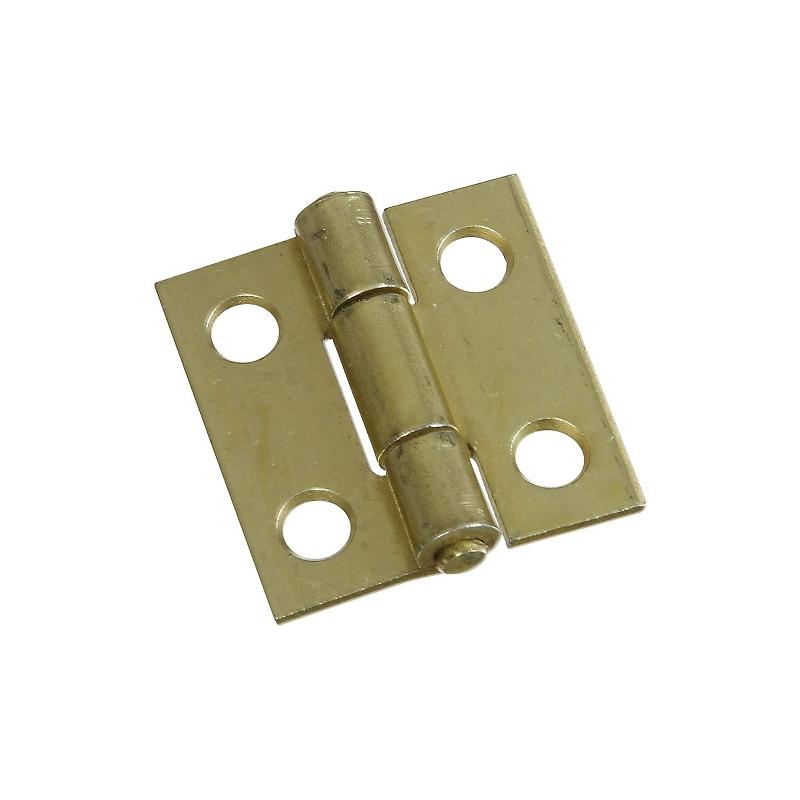

An image of NATIONAL NARROW HINGE 1" BRS

In Stock

We currently have 5 CG in stock.

PRODUCT OVERVIEW

National Hardware Narrow Hinge, 7 lb Weight, Door Leaf Width: 1 in, Door Leaf Thickness: 0.045 in, Frame Leaf Width: 1 in, Frame Leaf Thickness: 0.045 in, Number of Knuckles: 3, Pin Type: Fast Spun, Pin Diameter: 0.106 in, Orientation Type: Left, Right, Mortise Mounting, Number of Mounting Holes: 4, Mounting Hole Diameter: 0.165 in, Hole Spacing: 5/8 in, Brass/Cold Rolled Steel, Brass, Dimensions: 1 in L x 1 in W

Product Details

Dimensions1 in L x 1 in W
Door Leaf Thickness0.045 in
Door Leaf Width1 in
FinishBrass
Frame Leaf Thickness0.045 in
Frame Leaf Width1 in
Hole Spacing5/8 in
MaterialBrass/Cold Rolled Steel
Mounting Hole Diameter0.165 in
Mounting TypeMortise
Number of Knuckles3
Number of Mounting Holes4
Orientation TypeLeft Right
Pin Diameter0.106 in
Pin TypeFast Spun
Weight Capacity7 lb

Features

  • Swaged for mortise installations
  • Non-removable pin is for added security
  • Tight pin allows for right or left hand applications
