PRODUCT OVERVIEW

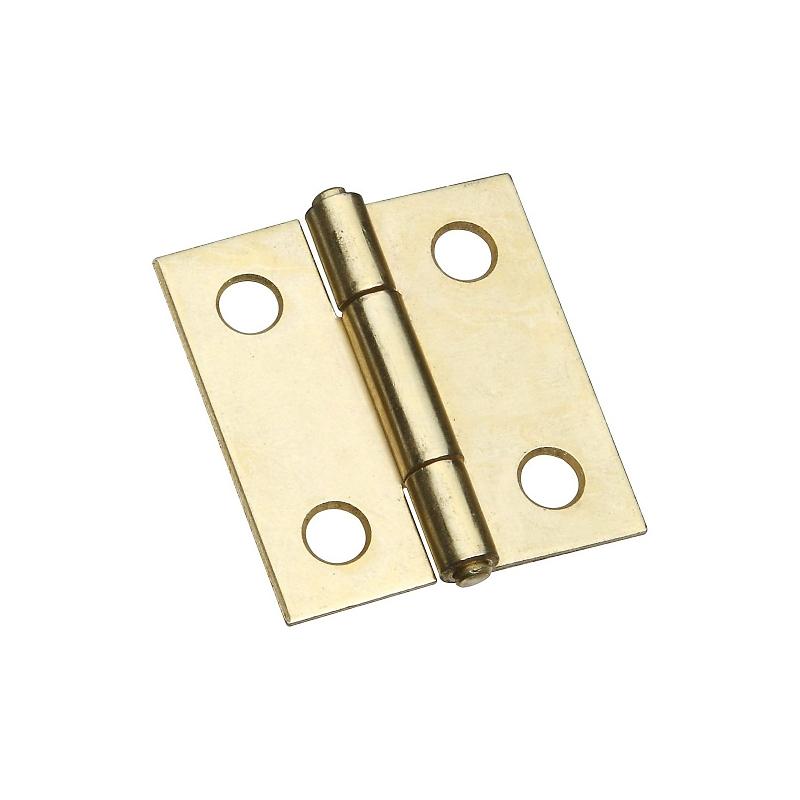

National Hardware Narrow Hinge, 7 lb Weight, Door Leaf Width: 1-1/2 in, Door Leaf Thickness: 0.045 in, Frame Leaf Width: 1-1/2 in, Frame Leaf Thickness: 0.045 in, Number of Knuckles: 3, Pin Type: Fast Spun, Pin Diameter: 0.106 in, Orientation Type: Left, Right, Mortise Mounting, Number of Mounting Holes: 4, Mounting Hole Diameter: 0.197 in, Hole Spacing: 1.046 in, Brass/Cold Rolled Steel, Brass, Dimensions: 1-3/8 in L x 1-1/2 in W

Product Details

Dimensions	1-3/8 in L x 1-1/2 in W
Door Leaf Thickness	0.045 in
Door Leaf Width	1-1/2 in
Finish	Brass
Frame Leaf Thickness	0.045 in
Frame Leaf Width	1-1/2 in
Hole Spacing	1.046 in
Material	Brass/Cold Rolled Steel
Mounting Hole Diameter	0.197 in
Mounting Type	Mortise
Number of Knuckles	3
Number of Mounting Holes	4
Orientation Type	Left Right
Pin Diameter	0.106 in
Pin Type	Fast Spun
Weight Capacity	7 lb

Features

• Swaged for mortise installations
• Non-removable pin is for added security
• Tight pin allows for right or left hand applications
