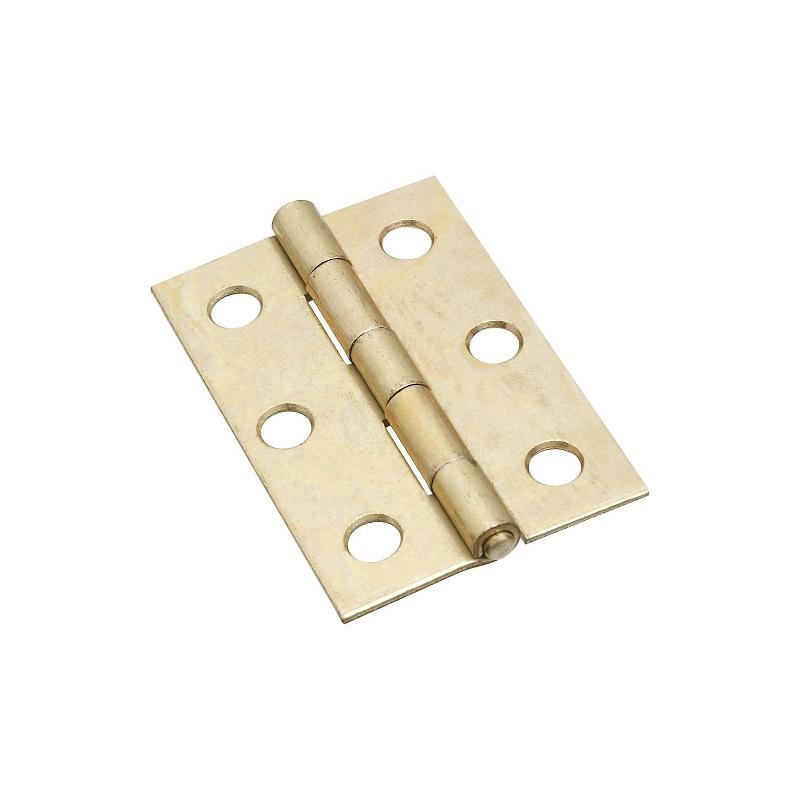

National Narrow Hinge Brass 2-1/2" 2Ct

PRODUCT OVERVIEW

National Hardware Narrow Hinge, 20 lb Weight, Door Leaf Width: 2-1/2 in, Door Leaf Thickness: 0.056 in, Frame Leaf Width: 2-1/2 in, Frame Leaf Thickness: 0.056 in, Number of Knuckles: 5, Pin Type: Fast Spun, Pin Diameter: 0.128 in, Orientation Type: Left, Right, Mortise Mounting, Number of Mounting Holes: 6, Mounting Hole Diameter: 0.218 in, Hole Spacing: 1 in, Steel, Brass, Dimensions: 1-11/16 in L x 2-1/2 in W

Product Details

Dimensions	1-11/16 in L x 2-1/2 in W
Door Leaf Thickness	0.056 in
Door Leaf Width	2-1/2 in
Finish	Brass
Frame Leaf Thickness	0.056 in
Frame Leaf Width	2-1/2 in
Hole Spacing	1 in
Material	Steel
Mounting Hole Diameter	0.218 in
Mounting Type	Mortise
Number of Knuckles	5
Number of Mounting Holes	6
Orientation Type	Left Right
Pin Diameter	0.128 in
Pin Type	Fast Spun
Weight Capacity	20 lb

Features

• Swaged for mortise installations
• Non-removable pin is for added security
• Tight pin allows for right or left hand applications
