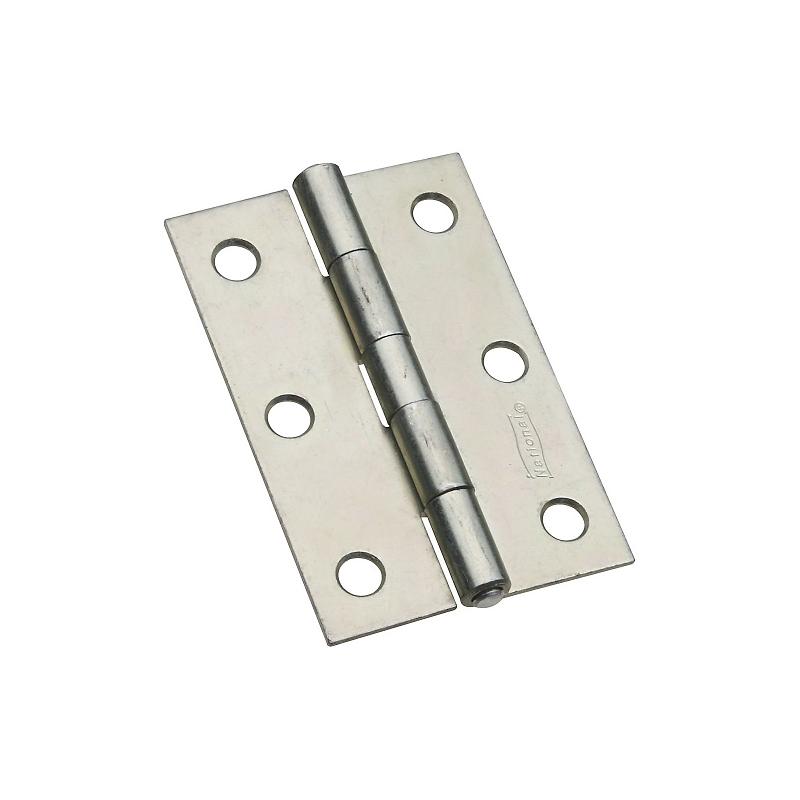

National Narrow Hinge 3" 2Ct

PRODUCT OVERVIEW

National Hardware Narrow Hinge, 28 lb Weight, Door Leaf Width: 3 in, Door Leaf Thickness: 0.065 in, Frame Leaf Width: 3 in, Frame Leaf Thickness: 0.065 in, Number of Knuckles: 5, Pin Type: Fast Spun, Pin Diameter: 0.106 in, Orientation Type: Left, Right, Mortise Mounting, Number of Mounting Holes: 6, Mounting Hole Diameter: 0.23 in, Hole Spacing: 1.188 in, Steel, Zinc, Dimensions: 2 in L x 3 in W

Product Details

Dimensions	2 in L x 3 in W
Door Leaf Thickness	0.065 in
Door Leaf Width	3 in
Finish	Zinc
Frame Leaf Thickness	0.065 in
Frame Leaf Width	3 in
Hole Spacing	1.188 in
Material	Steel
Mounting Hole Diameter	0.23 in
Mounting Type	Mortise
Number of Knuckles	5
Number of Mounting Holes	6
Orientation Type	Left Right
Pin Diameter	0.106 in
Pin Type	Fast Spun
Weight Capacity	28 lb

Features

• Swaged for mortise installations
• Non-removable pin is for added security
• Tight pin allows for right or left hand applications
