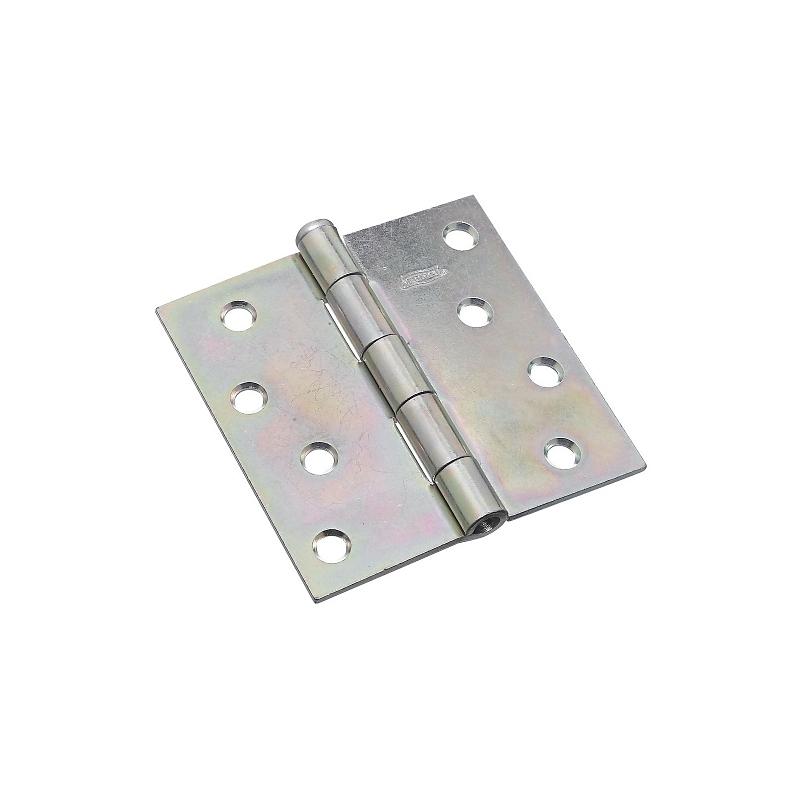

National Broad Hinge Crs 4"
$12.69 / CD
In Stock
We currently have 2 CD in stock.
PRODUCT OVERVIEW
National Hardware Broad Hinge, 70 lb Weight, Door Leaf Width: 4 in, Door Leaf Thickness: 0.11 in, Frame Leaf Width: 4 in, Frame Leaf Thickness: 0.11 in, Number of Knuckles: 5, Pin Type: Removable, Loose, Pin Diameter: 0.27 in, Full Mortise Mounting, Number of Mounting Holes: 8, Mounting Hole Diameter: 0.29 in, Hole Spacing: 1 in, Cold Rolled Steel, Zinc, Dimensions: 3.98 in L x 4 in WProduct Details
| Dimensions | 3.98 in L x 4 in W |
| Door Leaf Thickness | 0.11 in |
| Door Leaf Width | 4 in |
| Finish | Zinc |
| Frame Leaf Thickness | 0.11 in |
| Frame Leaf Width | 4 in |
| Hole Spacing | 1 in |
| Material | Cold Rolled Steel |
| Mounting Hole Diameter | 0.29 in |
| Mounting Type | Full Mortise |
| Number of Knuckles | 5 |
| Number of Mounting Holes | 8 |
| Pin Diameter | 0.27 in |
| Pin Type | Removable Loose |
| Weight Capacity | 70 lb |
Features
- Swaged for mortise installations
- Loose pin allows doors to be removed without removing hinge
