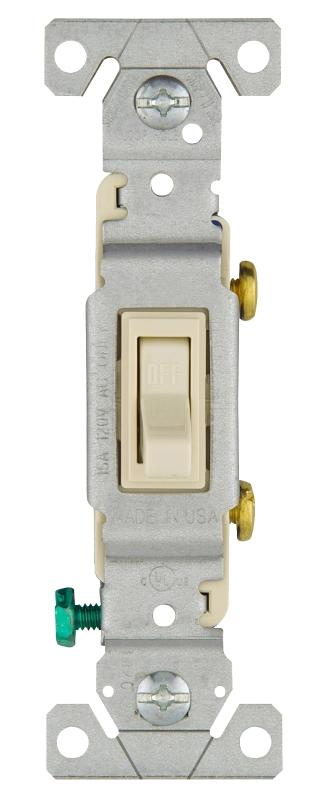

PRODUCT OVERVIEW

Longer, wider strap on toggle switches provides 40% more contact area to wallboard. Virtually eliminates floating installations. Industrial design cam-action mechanism insures quiet switch action. Patented built-in wire stripper for #14 and #12 wire to speed installation. Unbreakable top and bottom housing eliminates call-backs due to jobsite breakage. Patented built-in wire looper for pre-looping. Three-way switches feature additional push-in common termination for feed-through tapping. Push-in terminals accept #14 solid wire only. Side wire terminals accept up to #10 solid or stranded wire. Tri-combo screws accept slotted, Phillips and Robertson head tools for installations in both the US and Canada.

Product Details

Actuator Type	Toggle
Color	Light Almond
Current Rating	15 A
Dielectric Strength	1500 V
Dimensions	4.2 in L x 1.3 in W x 1.103 in D
Housing Material	Polycarbonate
Mounting Type	Wall
Number of Poles	1
Temperature Rating	-20 to 60 deg C
Voltage Rating	120 V
Wattage Rating	0.5 hp

Features

• Push-in terminals accept #14 AWG solid wire only, side wire terminals accept up to #10 AWG solid wire
• Long, broad mounting strap virtually eliminates floating installations
• Patented built-in wire stripper for #12 and #14 AWG wire to speed installation
• Tri-combo screws accept Slotted, Phillips and Robertson head tools for installation flexibility
• Wire looper speeds termination of both #14 and #12 AWG wire
