Prosource Storeroom Lock Gr2 Ss

PRODUCT OVERVIEW

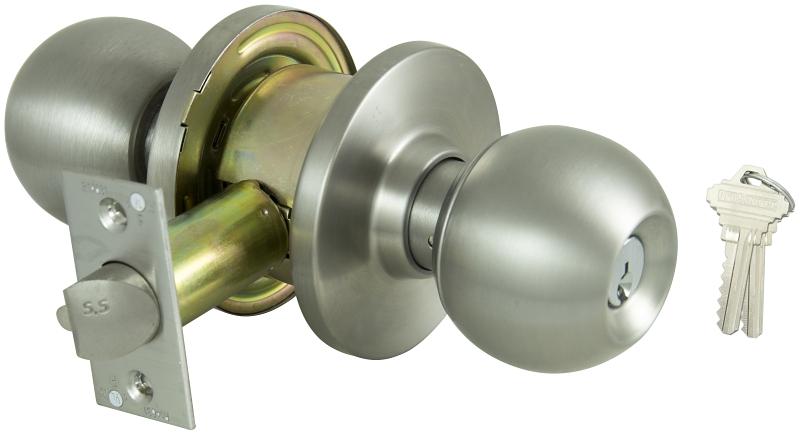

ProSource Storeroom Lockset, Commercial Commercial/Residential, 2 Grade, 2-3/4 in Backset, Locking/Unlocking Type: Dead Locking, Ball Design, Fixed Backset, 1 in Edge Bore Diameter, 2-1/8 in Cross Bore Diameter, 1-3/4 to 1-3/8 in Door Thickness, 6-Pin Cylinder, 1-Cylinder, SC1 Keyway, Different Key, Fixed Latch, 1 x 2-1/4 in Faceplate, T-Style Strike, 1-1/8 x 2-3/4 in Strike, 1/2 in Bolt Throw, Stainless Steel, Stainless Steel, Stainless Steel, Dimensions: 428 x 295 x 233 mm, Includes: (2) Keys

Product Details

Backset Size	2-3/4 in
Backset Type	Fixed
Bolt Throw Size	1/2 in
Color	Stainless Steel
Commercial/Residential	Commercial
Cross Bore Diameter	2-1/8 in
Cylinder Type	6-Pin
Design	Ball
Dimensions	428 x 295 x 233 mm
Door Thickness	1-3/4 to 1-3/8 in
Edge Bore Diameter	1 in
Faceplate Size	1 x 2-1/4 in
Finish	Stainless Steel
Includes	(2) Keys
Key Type	Different
Keyway Type	SC1
Latch Type	Fixed
Locking/Unlocking Type	Dead Locking
Material	Stainless Steel
Number of Cylinders	1
Security Grade	2
Strike Size	1-1/8 x 2-3/4 in
Strike Type	T-Style

Features

• Schlage SC1 6-pin keyway
• The knobset has Grade 2 ANSI
• Use for commercial or heavy-duty residential security
• The knobset is UL approved 3 hr fire rating
