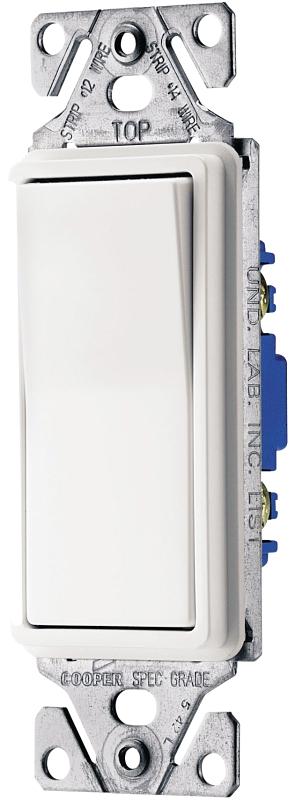

Switch Deco 3-Way Lighted 15A Wht
$10.79
In Stock
We currently have 2 in stock.
PRODUCT OVERVIEW
Ultrasonic welding and integrated construction of the strap and body. Backwire clamps on the side terminals for installation of #12 and #14 wire. Redesigned paddle. Built-in wire stripper for #12 and #14 wire. Stippled ground screw standard. 120/277 VAC rating for fluorescent lighting fixtures typical in commercial applications. Push in terminals accept #14 solid wire only. Temperature rating of -20 to 60 deg C. Meets flammability requirements per UL 94, 6504, V2 rated, VO rated. UL and cUL Listed, Meets all UL20 requirements, file # E18704. Carded.Product Details
| Color | White |
| Contact Configuration | 3-Way |
| Current Rating | 15 A |
| Dimensions | 4.19 in L x 1.44 in W x 0.97 in D |
| Housing Material | Thermoplastic |
| Includes | (1) Metal Strap |
| Mounting Type | Strap |
| Temperature Rating | -20 to 60 deg C |
| Terminal Type | Lead Wire |
| Voltage Rating | 120/277 V |
Features
- Thermoplastic rocker, top and back body are virtually unbreakable to deliver years of durable performance
- Ultrasonic welding and integrated construction of the strap and body provide great ground integrity even under heavy use
- Backwire clamps on side terminals provide for easy installation of #12 and #14 AWG wire
- Push-in terminals accept #14 AWG solid wire for quick installation
- Stippled ground screw terminal standard
- Long, broad mounting strap virtually eliminates floating installations
- Patented built-in wire stripper for #14 and #12 AWG wire to speed installation
- Tri-combo screws accept Slotted, Phillips and Robertson-head tools for installation flexibility
- Redesigned paddle for easier actuation and quiet operation
- Lighted switches glow in OFF position
