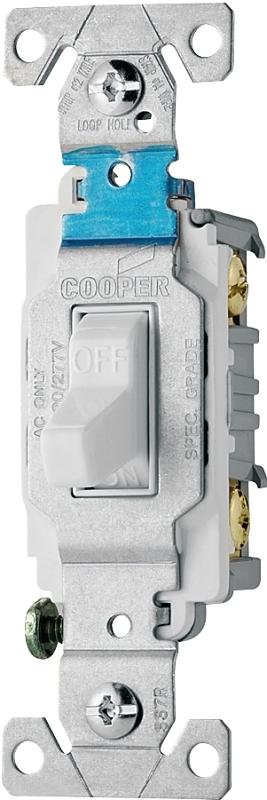

Eaton Switch Wht

PRODUCT OVERVIEW

Side wire terminals accept up to number 10 solid or stranded wire. Rated for fluorescent lighting fixtures typical in commercial applications. 0.050 in thick steel mounting strap zinc-plated for corrosion resistance. Ground screw terminal standard. Meets all UL 20 requirements, Federal specifications WS896.

Product Details

Actuator Type	Cam
Color	White
Contact Material	Silver
Current Rating	15 A
Dielectric Strength	1500 V
Housing Material	Nylon
Mounting Type	Wall
Number of Poles	1
Temperature Rating	-20 to 60 deg C
Terminal Type	Screw
Voltage Rating	120/277 V
Wattage Rating	0.5 to 2 hp

Features

• Patent pending spring cup toggle design for robust actuation
• Terminals accept up to #10 AWG solid or stranded
• Terminal screws backed out-ready for wiring
• Tri-combo head mounting and terminal screws ease installation
