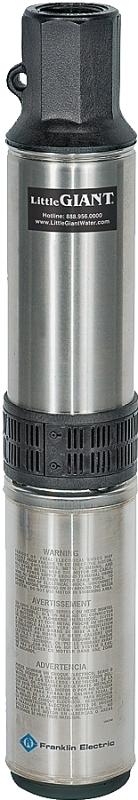

Well Pump Submersible 1/2Hp 230V

PRODUCT OVERVIEW

4 in submersible deep well pump. Powered by a 3-wire, 230 V industry standard VMC motor. Built-in check valve prevents backflow and ensures system pressure. Built-in suction screen and 1-1/4 in NPT thermoplastic discharge head helps to prevent debris from clogging impellers and provides full flow performance without the risk of corrosion. 1/2, 3/4 and 1 hp models come with a control box.

Product Details

Connection Size	1-1/4 in
Connection Type	FNPT
Current Rating	6 A
Flow Rate	12 gpm
HP Rating	0.5 hp
Includes	Control Box
Material	Stainless Steel
Maximum Head	231 ft
Motor Type	3-Wire
Pressure Rating	80 psi
Suitable for	4 in Dia and Above Drilled Wells
Voltage Rating	230 V

Features

• Powered by industry standard 3-wire motors
• Thermoplastic discharge and motor bracket
• Stainless steel pump shell
• Built-in suction screen and check valve
