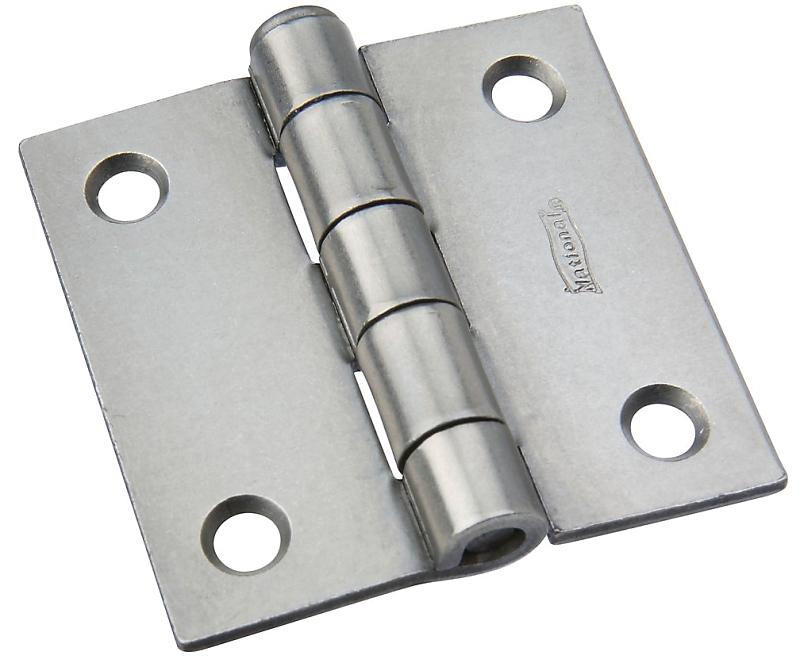

National Broad Hinge Crs 2"

PRODUCT OVERVIEW

504. Designed for general utility and industrial applications. Hinges are swaged for mortise installations. Loose pin allows doors to be removed without taking off hinges. Plain steel version can be welded. Boxed.

Product Details

Dimensions	2 in L x 2 in W
Door Leaf Thickness	0.077 in
Door Leaf Width	2 in
Finish	Steel
Frame Leaf Thickness	0.077 in
Frame Leaf Width	2 in
Hole Spacing	1-3/8 in
Material	Cold Rolled Steel
Mounting Type	Full Mortise
Number of Knuckles	5
Number of Mounting Holes	4
Pin Diameter	0.19 in
Pin Type	Removable Loose
Weight Capacity	38 lb

Features

• Swaged for mortise installations
• Loose pin allows doors to be removed without removing hinge
