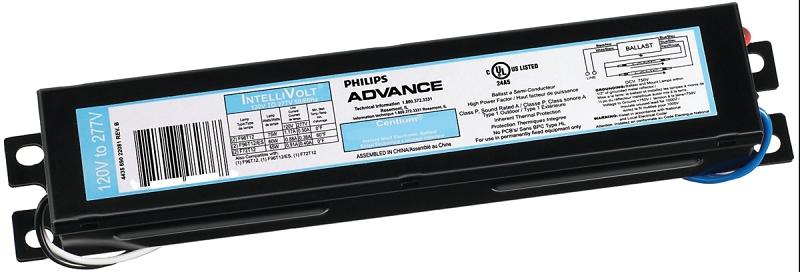

Ballast Electronic F96t12

PRODUCT OVERVIEW

For use with one or two F72T12, F96T12 or F96T12/ES bulbs. Minimum start temperature 0 deg (except F96T12/ES- 60 deg). 120 to 277 V. UL and CSA listed.

Product Details

Ballast Factor	0.88
Circuit Type	Parallel
Current Rating	0.48/1.13 A
Dimensions	9.5 in L x 1.3 in W x 1 in H
Ignition Time	0.1 s
Lamp Wattage	75 W
Material	Metal
Number of Lamps	2
Operating Frequency	50/60 Hz
Operating Temperature	70 deg C
Start Type	Instant
Total Harmonic Distortion (THD)	10 %
Voltage Rating	120/277 V
Wattage Rating	132 to 135 W
Wire Size	18 AWG
